Series 7000 Pop-up Displays
Available in standard, midi and mini versions the Series 7000 is a very versatile, cross-braced, self-locking pop-up display system. The high quality aluminium framework has a blue or matt silver anodised finish and is available in curved or straight configurations.
The standard version offers large panel sizes ideal for making an impression at busy exhibition venues, while the mini system is effective even in the smallest available spaces or where ceiling height may be restricted.
A superb self-locking framework, the ability to accommodate rigid panels and a versatile external shelving system distinguish this pop-up from most of it's competitors.
- Description
- Specifications
 |
 |
|

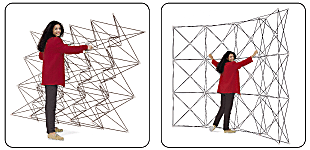

Self locking: Simply lift upwards and outwards to expand the frame and it will automatically lock into place. |
Rigid panels: When used with rigid panels, the Series 7000 system does not need any magnetic bars or tape as the panels slot directly into the frame. |
 |
External shelving: With the use of specially slotted magnetic bars (a), one or more shelves can be attached to any of the main panels (b), in one of two ways; either as an angled literature holder (c) or as a flat shelf (d) which is ideal for displaying small products. The external shelves do not require any special treatment of the graphic panels and can be added retrospectively to any existing Series 7000 standard curved system. |
 |
| Halogen spotlights: They slot securely onto the frame above each main panel. |
2 x 3 Configuration |
3 x 3 Configuration |
4 x 3 Configuration |
|
 |
 |
 |
|
| Overall dimensions inc graphics in metres | w x h x d |
w x h x d |
w x h x d |
| Standard Curved | 1.86 x 2.40 x 0.39 |
2.52 x 2.40 x 0.62 |
3.13 x 2.40 x 0.84 |
| Standard Straight | 2.09 x 2.40 x 0.37 |
2.87 x 2.40 x 0.37 |
3.65 x 2.40 x 0.37 |
| Midi Curved | 1.70 x 2.24 x 0.37 |
2.40 x 2.24 x 0.60 |
3.00 x 2.24 x 0.80 |
| Midi Straight - not available | |||
| Mini Curved | 1.50 x 1.95 x 0.35 |
2.07 x 1.95 x 0.50 |
2.51 x 1.95 x 0.75 |
| Mini Straight | 1.75 x 1.95 x 0.27 |
2.42 x 1.95 x 0.27 |
3.08 x 1.95 x 0.27 |
| Weights in Kg | frame + magnetic bars + graphics |
frame + magnetic bars + graphics |
frame + magnetic bars + graphics |
| Standard | 3.6 + 2.9 + 5.3 |
4.9 + 3.4 + 7.0 |
6.2 + 4.0 + 8.7 |
| Midi | 3.4 + 2.9 + 4.8 |
4.7 + 3.4 + 6.3 |
6.0 + 4.0 + 7.8 |
| Mini | 2.4 + 2.4 + 3.6 |
3.4 + 2.9 + 4.7 |
4.5 + 3.3 + 5.8 |
